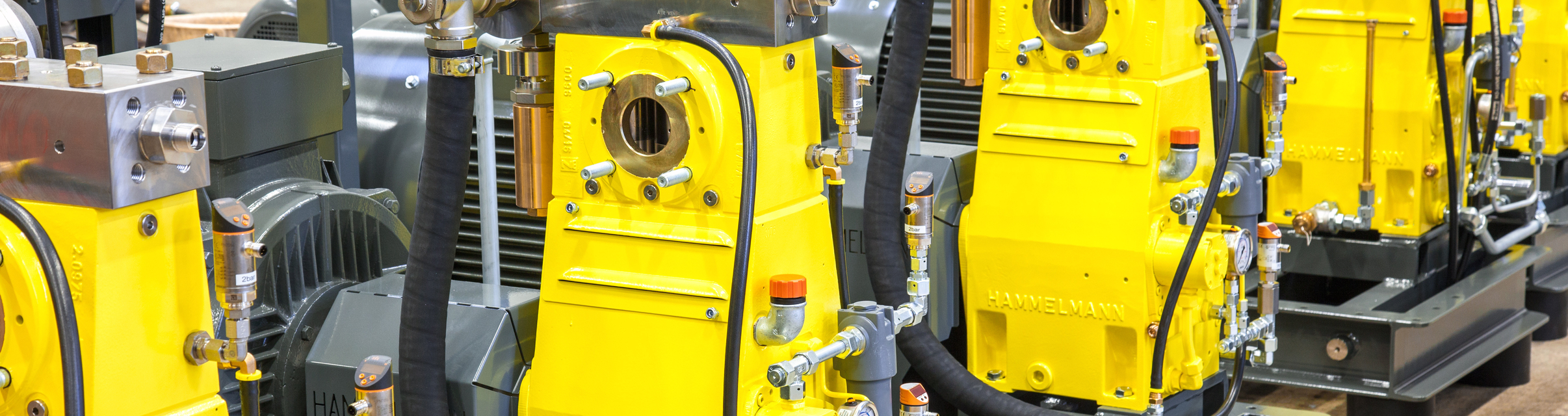

Configurate your Hammelmann high-pressure pump

Controlled

• Pressure control valves keep the desired operating pressure in the system at a constant level and are also used for depressurizing the system

• Bypass valves are a low-wear alternative for depressurizing high-pressure pumps

• Operation by multiple consumers possible

• Many alternating load cycles possible

• Splitter nozzles reduce wear in pressure control valves


Safe

• Safety valves prevent overpressure in the system and are optimized for regular alternating loads

• Bursting disks prevent overpressure in the system and can be replaced easily by the user when required

• Pre-pressure pumps reliably guarantee the required supply pressure

• Filter systems on the water supply side prevent harmful foreign bodies from entering the system

• Prepared fittings for attaching sensors, filters, etc. are available for the water supply side


Convenient

• Pressure maintaining valves prevent water from escaping from the water tool when in depressurized idle running

• Check valves completely prevent the return flow of water so that the consumer can also be operated far above the pump without accidentally filling the hose with air


Clear

• “ES3” touchscreen control

• Analog and digital manometers

• Various sensors possible

• Many operating parameters can be measured and displayed


Water-tight

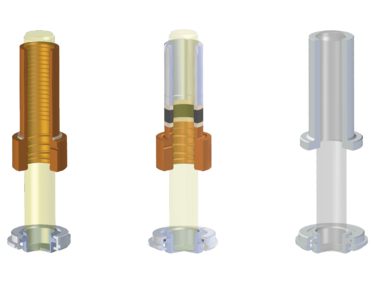

• Many sealing variations allow for parts which carry water to be configured individually in order to adjust the pump optimally to the intended application.


• More information:
  Design features

Flexible

• Conversion kits allow for quick and easy conversion to different power levels (pressure rate and delivery rate)

• Pre-mounted seal sets minimize the conversion time


Pinpoint precision

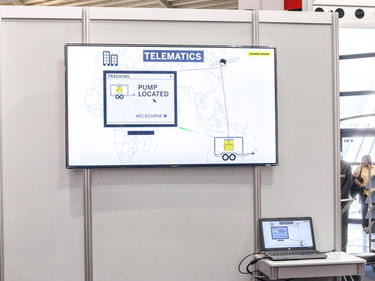

• GPS tracking via web portal

• Operating data can be sent worldwide via the cellular network

• Operating data can be tracked in the web portal

• Hammelmann remote maintenance possible
